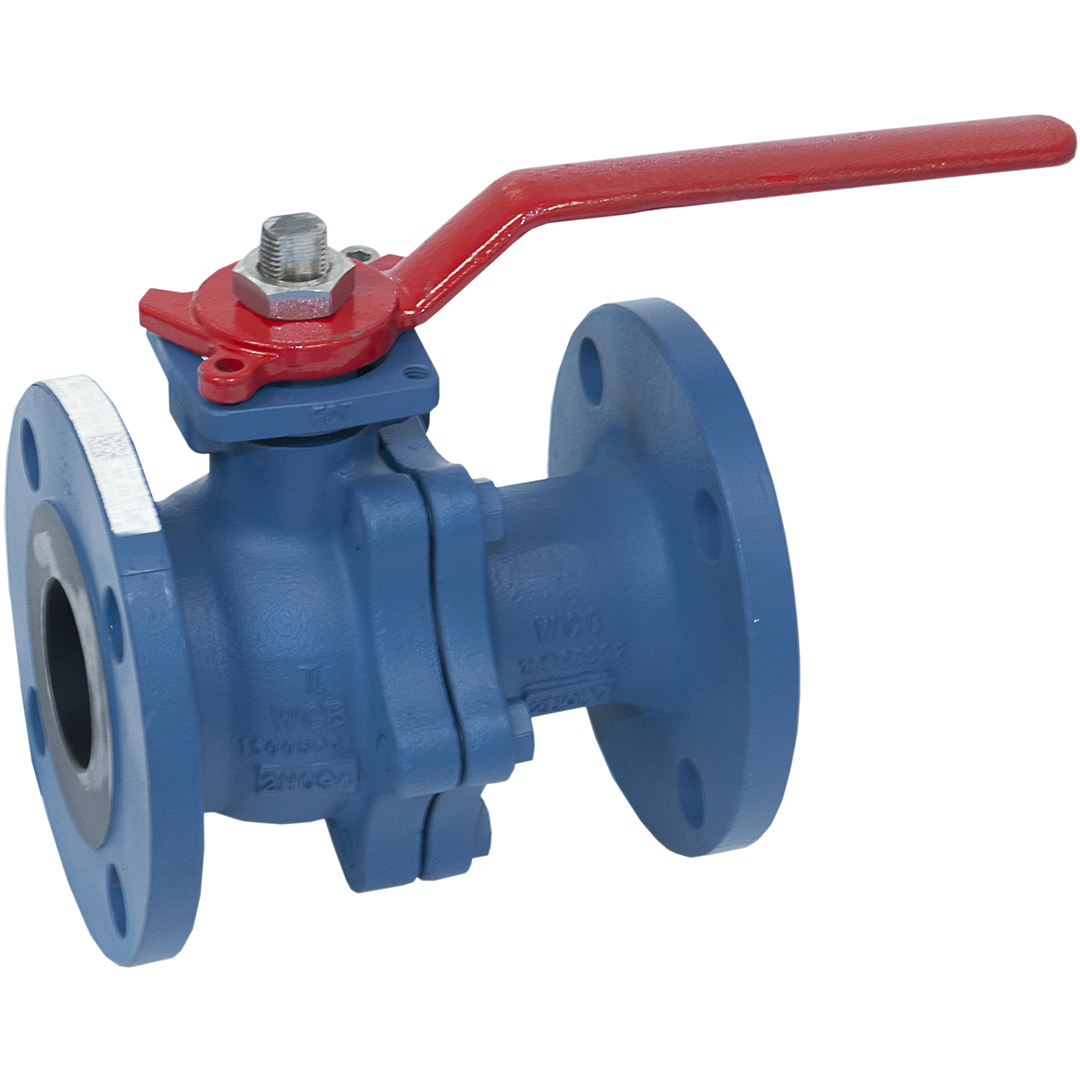

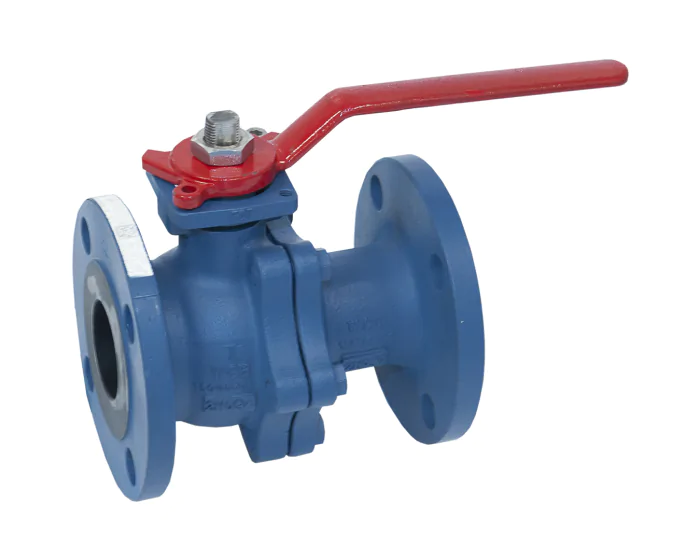

Carbon steel ball valve 768 2 piece body RF ANSI300 HT 1/2''
€92.40
(excl. btw)
The 768 series ball valve is a split-body model with Class 300 PN50 flanges, made of carbon steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Brand
ICP VALVES
Tightness test standard
EN 12266-1 Rate A. API 598
Stem sealing material
Graphite
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class CH
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Lockable
Yes
Square, star (mm)
MEP M10x7
ATEX compatible
Yes
Torque (Nm)
10
DN
DN15 - 1/2''
Face to Face (mm)
140.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
20.0
Body material
Carbon steel A216 WCB (1.0619)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
Seats
TFM 1600
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
230
TS min (°C)
-29
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Black
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6576
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2''
768015
S1006794
€92.40
(excl. btw)
add to cart
6577
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4''
768020
S1006795
€108.16
(excl. btw)
add to cart
6578
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1''
768025
S1006796
€134.41
(excl. btw)
add to cart
6579
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2
768040
S1006797
€253.06
(excl. btw)
add to cart
6580
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2''
768050
S1006798
€287.71
(excl. btw)
add to cart
6581
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3''
768080
S1006799
€569.13
(excl. btw)
add to cart
6582
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4''
768100
S1006800
€875.73
(excl. btw)
add to cart
6583
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6''
768150
S1006801
€1,858.59
(excl. btw)
add to cart
6584
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8''
768200
S1006802
€4,032.99
(excl. btw)
add to cart
